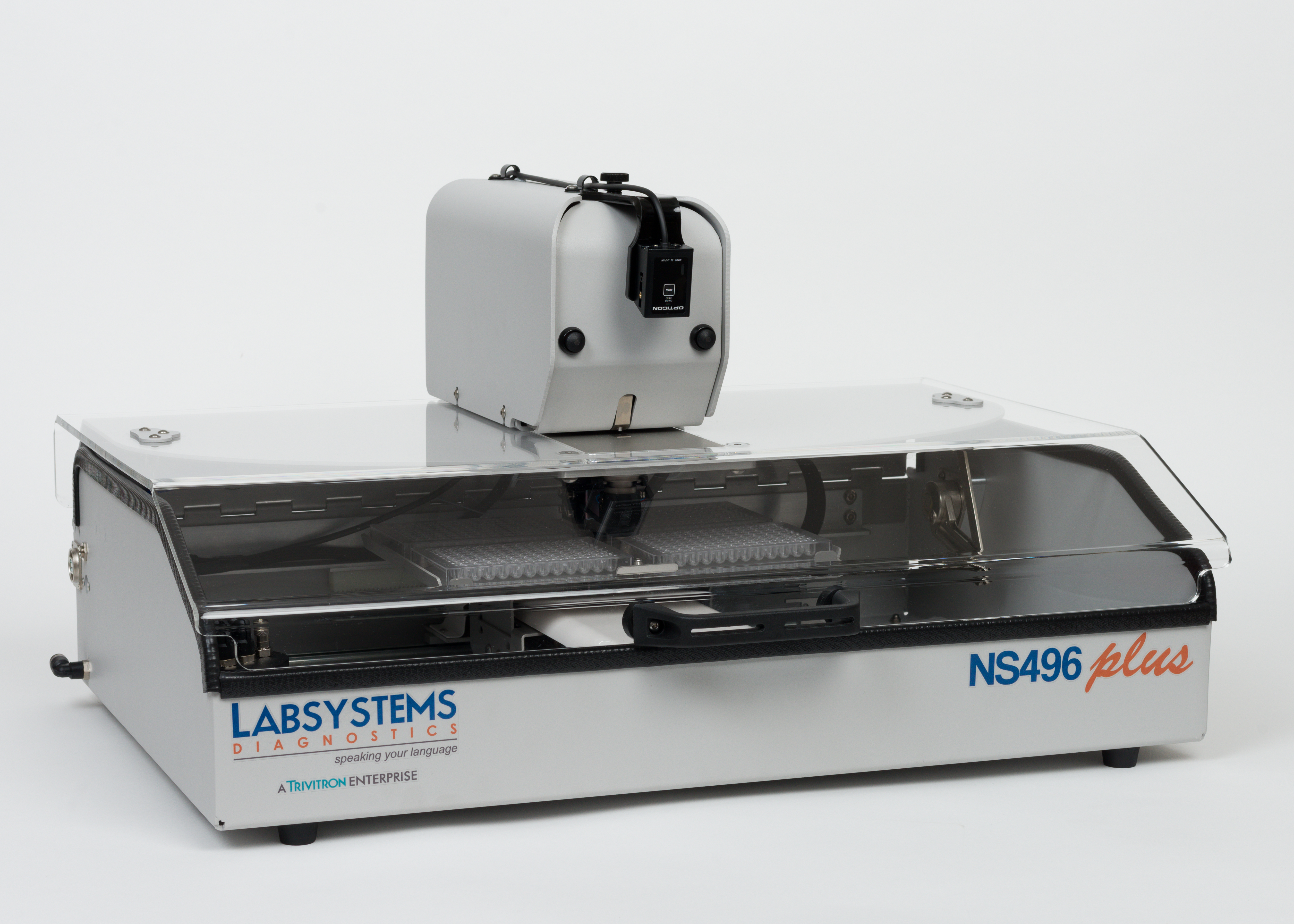

Automatic Neonatal DBS Puncher
Automatic Neonatal DBS Puncher Efficient, precise, and fully automated solution for neonatal dried blood spot (DBS) processing. Designed for reliability and ...
Overview
The Automatic Neonatal DBS Puncher is a cutting-edge instrument designed to streamline neonatal DBS sample processing. Compact and highly automated, it ensures precise sample punching while minimizing contamination risks. With integrated software controls and flexible punching options, it supports laboratories in maintaining efficiency and traceability in newborn screening programs.
Key Features
Precision Punch and Die
- High-grade tool steel components for durability and accuracy.
- Compatible with single and dual punch configurations to match diverse laboratory protocols.
Dust Extraction System
- Removes paper dust at the source using a disposable filter.
- Reduces the risk of sample and instrument contamination.
Auto-Trigger Punch Activation
- Detects sample cards automatically and punches with minimal delay.
- Eliminates the need for hand or foot switches.
Integrated Barcode Reader
- Ensures accurate identification and traceability of plates, samples, controls, and standards.
- Supports full traceability throughout the punching process.
Quick-Release Punch and Die Set (Mark 4)
- Allows fast removal and replacement of punches for cleaning or size changes.
- Minimizes laboratory downtime.
Disk Detection System
- 5-beam design ensures reliable detection of disks that fail to enter the receiving well.
- Automatic response prevents processing errors.
Air Humidification System
- Guarantees accurate disk delivery to wells for downstream processing.
- Reduces chances of sample misplacement.
Dedicated Cleaning Receptacle
- Minimizes cross-contamination and simplifies maintenance.
Technical Specifications
- Plate Capacity : Two 96-well standard or deep-well plates, PCR plate, or 96-tube adapter for screw-top tubes
- Cleaning Container : Yes
- Punch System : Single
- Standard Punch Sizes : 1.0, 1.2, 1.5, 2.0, 3.0, 3.2, 3.8, 4.0, 4.7, 6.0 mm
- Quick Release Punch & Die : Yes (Mark 4)
- Multiple Pattern Punching : No
- Disk Detection System : 5-beam
- Barcode Reader : Integrated
- Air Humidification : Yes
- Dust Extraction : Optional
- Punch Activation : Foot or hand; Auto-trigger optional
- Computer Interface : Yes
- Dimensions (W x D x H) : 575 x 600 x 500 mm
- Power Supply : External 110–240V power pack
Instrument Control & Software Modules
Main Menu
- Secure access to software modules with supervisor and user-level passwords.
Test Editor Module
- Define and program individual tests, set punch sizes, number of disks, and filling order per plate.
- Supports up to 10 disks per well.
Distribution Module
- Monitors punching progress and instrument status.
- Displays current punching patterns for precise workflow management.
Configuration Module
- View and adjust instrument preferences and calibration.
- Supervisor access required for configuration changes.
