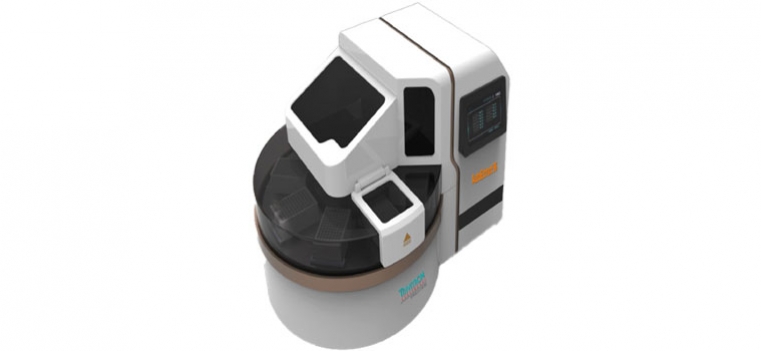

AutoExtract 96
AutoExtract 96 is a fully automated nucleic acid extraction system that processes up to 96 clinical samples in 30 minutes using magnetic bead technology, ensuring high recovery and consistent results.
Overview
AutoExtract 96 is a high-throughput nucleic acid extraction system designed for clinical laboratories. It efficiently extracts and purifies nucleic acids from a wide range of clinical samples using advanced magnetic bead technology. Capable of processing 96 samples in just 30 minutes, it streamlines your laboratory workflow without compromising accuracy.
Features
- Fully automated extraction and purification of nucleic acids
- Magnetic bead-based methodology for high recovery and consistency
- One-click operation interface with minimalist design
- Maximum throughput of 96 samples per run
- Drip-proof design ensures precise results
- Open platform compatible with a wide range of downstream tests
- Multiple shaking modes with adjustable frequency and amplitude
- Controlled heating up to 100°C for optimized extraction
Technical Specifications
- Throughput : 96 samples / 30 mins
- Sample Volume : 20–1000 µL
- Recovery Rate : 95% using magnetic beads
- Plate Type : 96 deep well plate
- Microplate Racks : 8-unit rotary structure
- Heating Control : Room temperature to 100°C
- Shaking Mode : Multiple adjustable modes
- Working Environment : 10–30°C, ≤80% RH, atmospheric pressure 86–106 kPa
- Power Requirements : 220 V, 50/60 Hz
