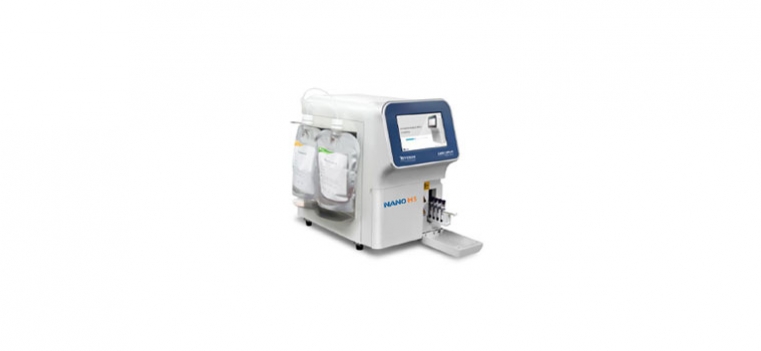

NANO H5

Fully-Automated HPLC Analyzer

overview

Trivitron's NANO H5, a fully-automated HPLC analyzer is compact, uses Ion exchange liquid chromatography for quantitative determination of the glycated hemoglobin (HbA1c) in human whole blood

Features

Compact, automated High Performance Liquid Chromatography (HPLC) analyzer
Ion exchange liquid chromatography for quantitative determination of the glycated hemoglobin (HbA1c) in human whole blood.
Fast turnaround time by reporting results in less than 130 secs
Fully automated loader – 5 samples at a time
Barcode scanner for sample identification
NGSP & IFCC Preferred Methodology

Technical Specifications

Methodology: High-Performance Liquid Chromatography (HPLC)
Test Modes: Fast mode, variant mode
Auto Sample Station: 5 Positions
Sample Type: Whole blood sample or Diluted sample
Matched Reagents: Eluents A and B, and hemolytic agent L

Power Supply:
Voltage: AC 100V~240V
Frequency: 50Hz/60Hz
Input power: 120VA

Operating Environment:
Ambient temperature: 10℃~30℃
Relative humidity: ≤80% (no condensation)
Atmospheric pressure: 75kPa~106kPa
No frost, condensation, water seepage, moisture or direct sunlight
