Overview

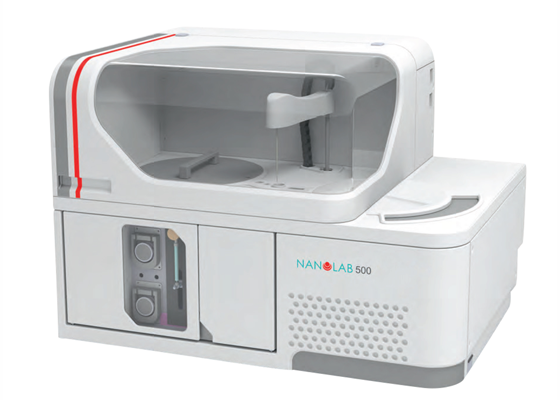

Nanolab 500 is a compact, fully automated, random-access clinical chemistry analyzer designed for mid- to high-volume laboratories. With a throughput of up to 300 photometric tests per hour or 480 tests per hour with the optional ISE module, it delivers high performance in a small footprint.
The system enables continuous loading, smart sample handling, and dependable automation for consistent and accurate results.
Key Features
- High Throughput : Up to 300 photometric tests/hour or 480 tests/hour with ISE module.
- Continuous Sample Loading : Direct access to sample sectors without opening the analyzer.
- Smart Software : Intelligent operating system with automatic reflex testing, QC scheduling, and method calibration.
- Integrated Barcode Scanning : For both samples and reagents, ensuring traceability and reduced manual error.
- Advanced Safety : Clot detection and probe collision prevention for safe, reliable operation.
- Optimized Cooling : 72-position reagent tray with onboard refrigeration.
- Flexible Sample Handling : 95-position sample tray supporting primary tubes and pediatric vials.
- Shared Components : Compatible software and hardware with Nanolab 700 for simplified service and maintenance.
Technical Specifications
Throughput
- Up to 300 photometric tests/hour
- Up to 480 tests/hour with optional ISE module
Samples and Reagents
- Sample volume : 2–100 µl (1 µl increments)
- Sample tray : 95 positions (5 racks x 19)
- Reagent tray : Up to 72 single reagents
- Refrigerated compartment : 8°C ±1°C
Pipetting System
- Single arm for sample and reagent handling
- Reaction preheater, capacitive level sensor, collision protection
- Internal and external probe cleaning
Reaction System
- Reaction cuvettes : 80 reusable plastic cuvettes (6 mm optical length)
- Reaction volume : 180–500 µl
- Incubator: 37°C with warm air circulation
- Reaction time : 0–10 minutes
- Washing station : 6 stages
- Water consumption : 1.5 L/hour (deionized)
Optical System
- UV quartz halogen lamp
- Photometric range : 0.1–3 Abs
- Wavelengths : 340–750 nm (12 filters)
- Supports single/double wavelength readings
Analytical Modes
- Full random access or batch operation
- STAT sample priority
- End point, kinetic, coagulation, turbidimetry, enzyme, and DOA assays
- Calibration : Linear, multilinear, sigmoid, logit-log (4/5 point), spline
- Automatic sample dilution and reflex testing
Quality Control
- Levy–Jennings and Twin plots
- Westgard rules compliance
Data Management
- Bidirectional LIS interface (RS232C, ASTM E1381)
- Compatible with Windows 8 or higher
ISE Module (Optional)
- MEDICA ISE Module
- Electrodes : Li+, Na+, K+, Cl−
- Sample types : Serum and urine
Working Conditions
- Power: 110–230 VAC, 50/60 Hz, 550 VA
- Temperature: 18–30°C
- Humidity: 35–80%
Dimensions & Weight
- 91 cm (W) × 68 cm (D) × 65 cm (H)
- Weight: 110 kg
Benefits
- Seamless workflow with continuous loading and quick accessibility.
- Reduced downtime through shared components with Nanolab 700.
- Smart automation minimizes manual intervention and ensures consistent quality.
- Built-in safety systems enhance reliability in daily operation.
- Efficient reagent cooling and management for extended reagent stability.
