Ultisys Retrofit Kit
The Ultisys Retrofit Kit converts conventional X-ray systems into advanced digital radiography units, featuring a wireless flat panel detector, intuitive imaging software, and superior CsI technology for sharp, low-dose imaging.
Overview
The Ultisys Retrofit Kit is designed to upgrade any existing analog X-ray system into a high-performance digital radiography solution. It enables precise, low-dose, high-resolution imaging with seamless workflow integration. The system includes a flat panel detector, medical-grade display monitor, and advanced image acquisition and processing software—delivering digital efficiency without replacing your existing X-ray equipment.
Key Highlights
- Wireless Flat Panel Detector with direct-deposit CsI scintillator for superior image clarity and lower patient dose
- Wi-Fi enabled acquisition and image transfer for faster workflows and flexible system sharing
- Lightning-fast image processing and display with powerful software tools
- Full Field AED (Automatic Exposure Detection) for effortless synchronization
- Rugged, lightweight design with a foldable handle for easy portability
- Instant image preview for improved throughput and reduced retakes
- Compatible with existing analog X-ray units, both fixed and mobile
Features
- Digital Conversion : Converts analog X-ray systems into a complete digital radiography setup using Kiran’s DR Retrofit technology.
- Wireless Operation : Wi-Fi enabled, cassette-sized 14" x 17" detector supports wireless acquisition and transfer.

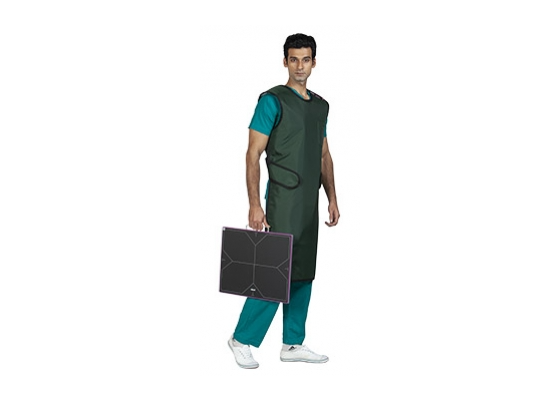

- Portability : Lightweight, slim profile with built-in foldable handle.
- Battery Life : Extended battery life allowing up to 1,400 shots and 7 hours of standby.
- High-Performance Detector : CsI direct-deposition technology on TFT/PD panel ensures high sensitivity and minimal noise.
- Optimized Image Quality : Produces detailed, high-contrast images at the lowest radiation dose.
- Efficiency : Shorter exposure time and faster image display improve workflow and patient turnaround.
Technical Specifications
Sensor
- Scintillator : Direct Deposit CsI TI
- Active Area : 433.7 × 354.8 mm
- Pixel Array : 2816 × 2304
- Pixel Pitch : 154 µm
Communication Interface
- Gigabit Ethernet / 2.45 GHz Wi-Fi (300 Mbps)
- Image Acquisition Time : 2–3 s (wired) / 4–5 s (wireless)
- Exposure Control : Full Field AED, Manual Sync
Environmental Conditions
- Operating Temperature : 5–35°C
- Humidity (Non-condensing) : 30–75% RH
- Storage Temperature : –20–55°C
- Storage Humidity : 10–90% RH
Mechanical
- Dimensions : 460 × 384 × 15 mm (18.11 × 15.11 × 0.59 in)
- Weight : 3.7 kg (8.16 lbs)
- Housing Material : Carbon Fiber (Front), High-Strength Aluminum Alloy (Back)
Power
- Power Dissipation : 8W (Standby), 20W (Operating)
- Power Supply Frequency : 50–60 Hz
Software
- Intuitive interface for image acquisition and advanced image processing

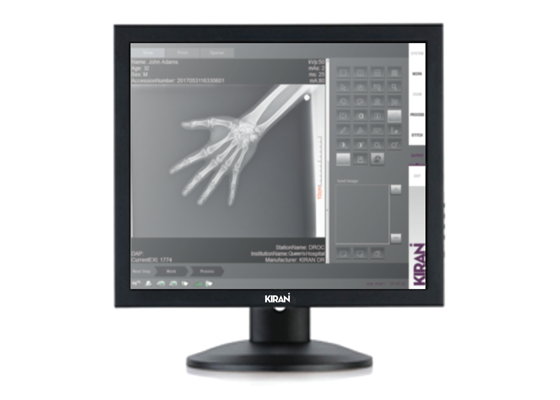

Diagnostic Display
- Display Size: 19"
- Resolution: 1280 × 1024
- Contrast Ratio: 900:1
- Brightness: 1000 cd/m² (with stabilization system)
- Viewing Angle: 170°/170°
- Aspect Ratio: 5:4
- Casing: Black Alloy
- Compliance: DICOM standard, compatible with DSA, DSI, CT, PACS applications
Benefits
- Enables digital imaging without system replacement
- Provides high-resolution, low-dose diagnostic images
- Ensures faster patient throughput with instant image access
- Cost-efficient upgrade compared to full system replacement
- Compatible across multiple X-ray setups, offering operational flexibility
