Mobile Radiography Solutions

High-quality, portable X-ray imaging for fast, point-of-care diagnostics.

Overview

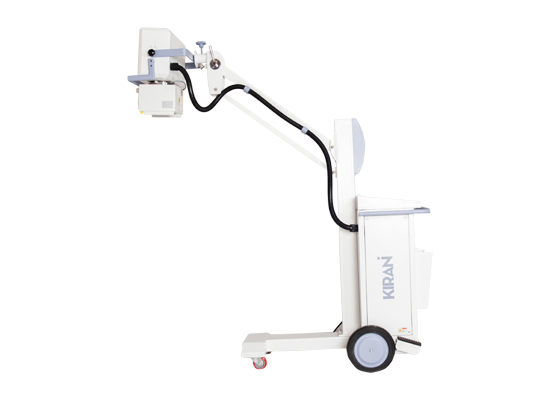

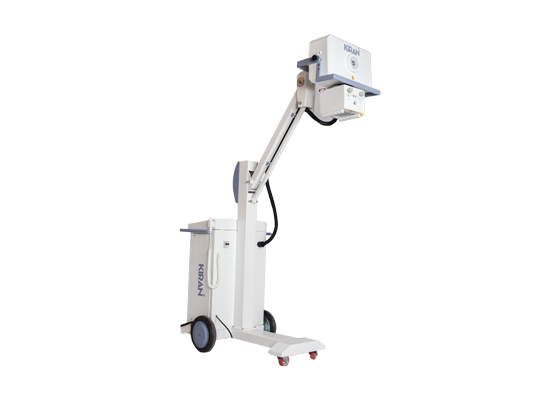

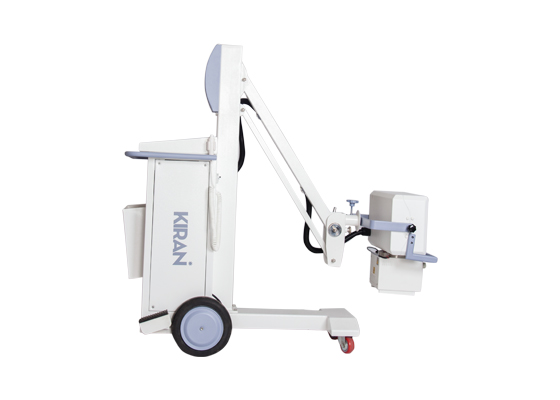

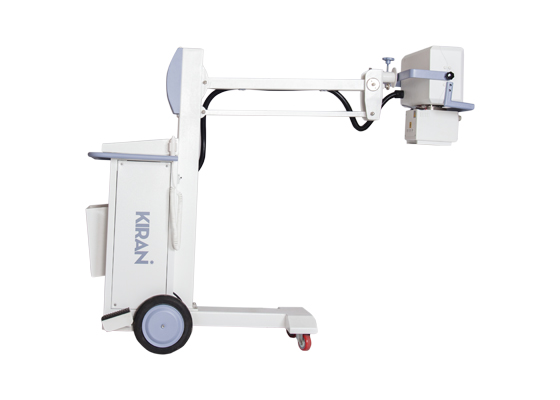

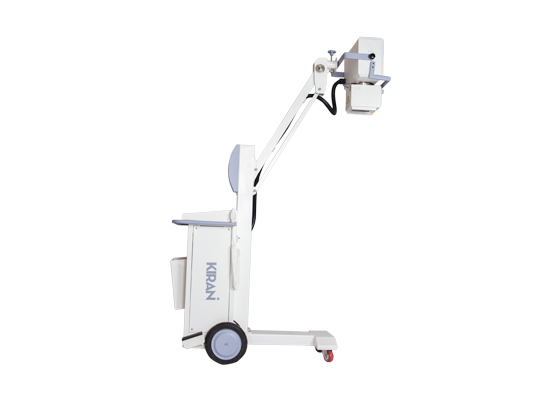

Ultisys 3.5kW, 4.0kW and 10kW Mobile Radiography System brings radiology directly to the point of care. Designed for fast, high-quality imaging across multiple departments, it combines mobility, maneuverability, and intuitive operation in a compact footprint. Available in both digital and analog variants, Ultisys Mobile X-Ray is suited for ICUs, OTs, wards, orthopedics, urology, and sports centers.

Features

Fully mobile X-ray unit with compact design
High-resolution imaging for accurate diagnostics
Easy-to-use interface for streamlined operation
Flexible deployment across clinical specialties
Available in Analog and Digital options
Smooth maneuverability in confined spaces

Technical Specifications

Detector type : Digital / Analog
Imaging speed : Rapid acquisition for bedside use
Dimensions & Weight : Compact for ease of mobility

Model – KIRAN Ultisys 3.5 kW 4.0kW & 10kW

Generator Output Rating : 3.5 kW / 4.0kW / 10kW
Frequency : High Frequency
kV Range : 40–110 kV / 40–110 kV / 40–120 kV
mA Max : 70 mA / 100 mA / 200 mA
mAs Range : 1–250 mAs
Anatomical Programs : 128 programs with APR utility
Display : 2/3 point

Tube Stand

Tube Stand : Spring balanced, lightweight, easy to carry and position
Wheels : 4 wheels
Collimator : Manual light beam diaphragm with rotation for exposure area adjustment, auto shut-off after 45 seconds
X-ray Tube Head : Monoblock version, stationary anode
Electrical Rating : 230V AC, 15A, 50/60 Hz
Weight : <150 kg

Flat Panel Detector – Single Detector (Wireless/Wired)

Scintillator : Cesium Iodide (High Stability CSi Scintillator)
Weight (including battery) : <150 kg (includes Stand, Monitor, Review Monitor & X-Ray)
Amorphous Silicon Flat Panel Detector (14” × 17”) with PIN Technology

Benefits

Reduces patient transfer, improving workflow efficiency
Delivers high-contrast images for confident diagnosis
Adaptable across multiple hospital departments
Minimal footprint for maximum accessibility
Smart investment with lasting clinical value
