Motorized Digital C-Arm
Fully motorized C-Arm with Flat Panel Detector technology for precise, high-quality imaging across orthopedic, urology, cardiovascular, gastro, and neuro surgeries. Smart Touch interface ensures seamless access from the sterile field.
Overview
The Kiran Motorized Digital C-Arm delivers fully motorized movement for precise imaging in the Hybrid OR. Engineered for efficiency and clinical versatility, it integrates Flat Panel Detector technology to provide high-quality images while optimizing dose control. Its intuitive Smart Touch interface enables surgeons to access images and controls directly from the sterile field, enhancing workflow and patient safety.
Features
- Fully motorized C-Arm movements (longitudinal, lateral, and orbital).
- Flat Panel Detector-based high-resolution imaging.
- Smart Touch user interface with sterile-field access.
- Real-time image acquisition and processing.
- Adjustable imaging modes for various surgical applications.
- Integrated dose management system.
- Compact design optimized for Hybrid OR environments.
Technical Specifications
| Key Features | Motorized Digital C-Arm |
|---|---|
| Output Power | 15 kW |
| Tube Type | Dual Focus, Rotating Anode X-Ray Tube. Tube Assembly Aluminium filtration 3.0mmAl |
| Focal Spots | Small Focus: 0.3 mm² , Large Focus: 0.6 mm² |
| Modes Available | Fluoroscopy, Paediatric, Boost, Snapshot & Radiography Mode |
| Imaging Resolution | 1.5K x 1.5K |
| Detector Type | Amorphous silicon, Cesium Iodide Scintillator (CsI:Tl) |
| Monitor Options | Single 27 inch / Single 32 inch |
| Free Space | 800 mm |
| Immersion Depth | 720 mm |
| Orbital Movement | 160° (-40°, +120°) |
| Image Storage | PC based Memory - Storage Capacity of more than 1,00,000 Images |
| Portability of Images | USB Drive, LAN Connectivity, CD Writer & DICOM |
Key Benefits
- Smooth Workflow : Fully motorized movements reduce manual adjustments and save time during procedures.
- Clinical Versatility : Supports orthopedics, urology, cardiovascular, gastro, and neuro surgeries.
- Optimized Dose Control : Advanced imaging technology ensures diagnostic quality while minimizing radiation exposure.

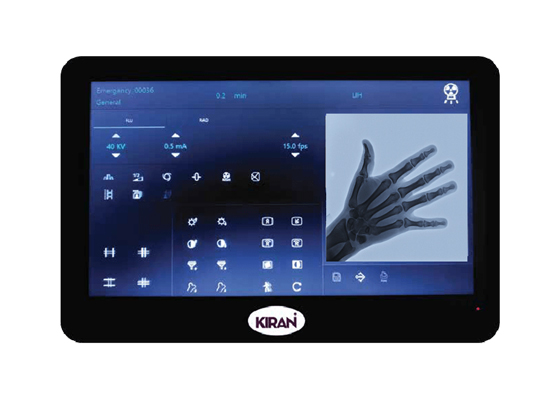

- Sterile Field Access : Smart Touch screen interface allows surgeons to navigate menus and view images without leaving the sterile zone.
- Enhanced Precision : Motorized positioning offers consistent, repeatable imaging angles.
