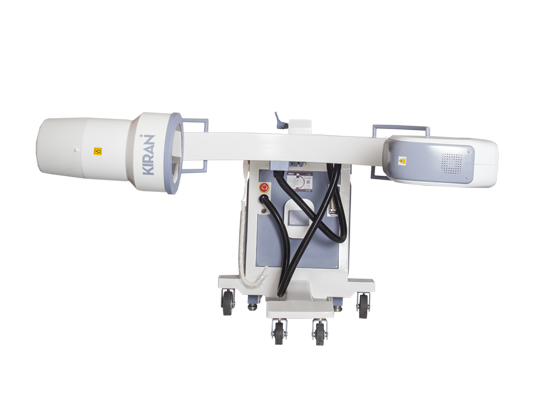

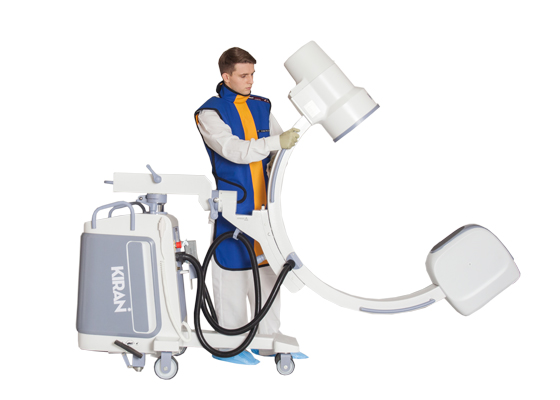

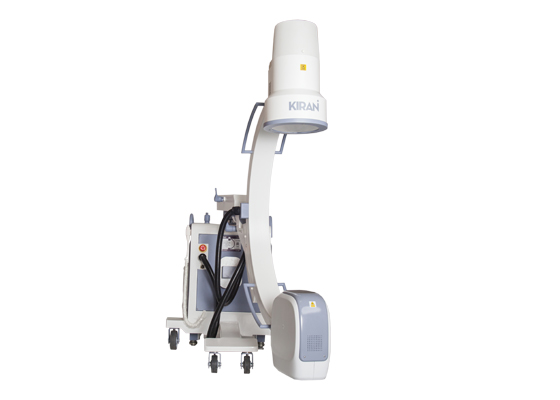

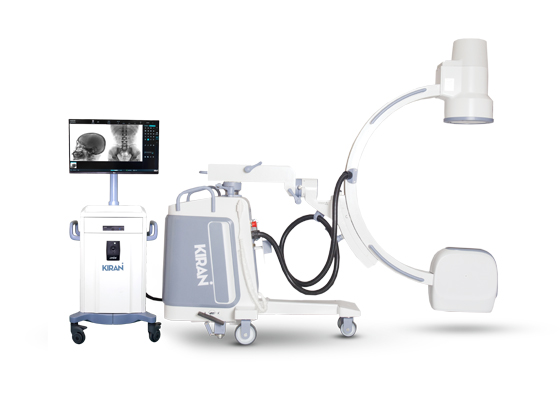

Image Intensifier–based C-Arm
High-performance surgical C-Arm system with Image Intensifier technology, offering sharp, real-time imaging and intuitive operation for diverse clinical applications.
Overview
Kiran's Image Intensifier–based C-Arms, available in Elite and Infinity Series, deliver consistent, high-contrast imaging powered by advanced High-Frequency Super Harmonic Generator technology. Designed for flexibility across operating rooms, these systems combine reliability, intuitive controls, and cost efficiency—supporting accurate diagnostics and seamless surgical workflows.
Key Features
- High-Frequency Super Harmonic Generator for sharper, low-dose imaging
- Multiple configuration options to match diverse clinical needs
- Compact and ergonomic design for smooth movement and positioning
- User-friendly interface with tactile keyboard and customizable presets
- Efficient cooling system for extended use in high-demand environments
- Digital image storage and retrieval for streamlined data management
Technical Specifications
| Key Features | Elite 1K x 1K | Infinity – 1K x 1K |
|---|---|---|
| Output Power | 5.0 kW | 3.5 kW |
| Normal Mode Current | 0.6 – 5.5 mA | 0.6 – 4.5 mA |
| Pediatric Mode Current | 0.1 – 2.5 mA | 0.1 – 2.25 mA |
| Boost Mode Current | 0.8 – 12 mA | 0.8 – 8 mA |
| Snapshot Mode Current | 0.8 – 12 mA | 0.8 – 8 mA |
| Radiography Mode Current | 35 – 80 mA | 25 – 70 mA |
| kV | 40 – 120 kV | 40 – 110 kV |
| Imaging Resolution | 1K x 1K | 1K x 1K |
| Monitor | 32” High Resolution | 32” High Resolution |
| Field of View | 23 cm / 9” | 23 cm / 9” |
| Free Space | 80 cm | 80 cm |
| Immersion Depth | 68 cm | 67 cm |
| Orbital Movement | 125° | 125° |
| +90° to -35° | +90° to -35° | |
| Image Resolution | ≥2.43 lp/mm | ≥2.6 lp/mm |
| Image Storage | PC Based Memory – Storage depends on Hard Disk Space | PC Based Memory – Storage depends on HD space more than 10,000 images |
| Portability of Image | USB Drive, LAN Connectivity & CD Writer | USB drive, LAN connectivity & CD writer. DICOM – Optional |
Benefits
- High-quality imaging at an affordable investment
- Reliable performance across multiple surgical disciplines
- Easy integration into existing hospital infrastructure
- Reduces procedure time with quick setup and intuitive controls
