Overview

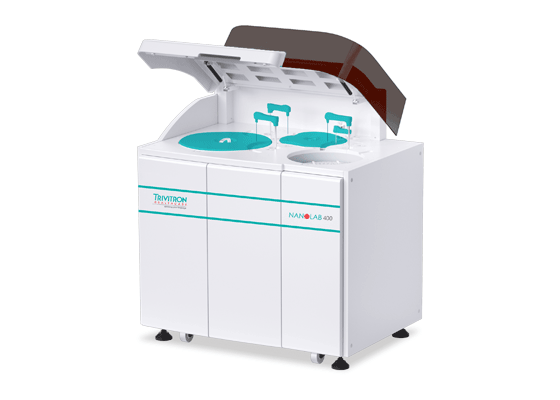

Nanolab 400 is a high-performance, fully automated clinical chemistry analyser built for large laboratory workloads. With a throughput of up to 400 tests per hour, it ensures fast, precise, and dependable biochemical analysis across a wide spectrum of assays. Its open system design, efficient resource utilization, and user-friendly interface enable laboratories to maintain high productivity while delivering consistent and reliable results for both routine and specialized chemistry testing.
Key Features
- Constant 400 test/ hour with double reagent
- High Quality System-packs, ensuring precise and accurate results.
- 90 reagent positions
- Automatic liquid level sensing, anti-collision protection
- Integrated full closed optical system, multi wavelength simultaneous detection
- New amorphous optical plastics reaction cups, perfect transmittance
- Maintenance free semiconductor solid state refrigeration
- Friendly surface and easy to operation
- 6-stage, 2 times automatic washing system, Alkaline cleaning solution
Technical Specifications
Sample Unit
- Sample tray: 120 sample positions
- Sample tube: Micro cup & test tube & blood collection tube can be used. (12 -13 )mm * ( 25-100 )mm
- Sample volume: 2-30µL, step by 0.1µL
- Sample probe: Liquid surface detection, timely tracking for liquid volume. Collision avoidance
- Sample barcode: Inbuilt
Reagent Unit
- Reagent tray: 90 reagent positions, Non-stop cooling system with peltier pad inside, 24 hours 2"C-14"C, open system, could accept any reagent.
- Reagent volume: 20-300µ1, step by 1µI
- Reagent needle: Liquid surface detection, timely tracking for liquid volume. Collision avoidance.
- Regent barcode: inbuilt
Reaction Unit
- Reaction tray: 90 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance.
- Reaction volume: 150µl-330µl
- Reaction time: 10 minutes
- Temperature: Peltier pad incubation system, reaction temperature (37°C ± 0.1 "C)
Mixing System
- Mixer: Paddle-type mixing, effective reducing of carry-over
Optical System
- Light source: Halogen lamp
- Wavelength: 340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm; 700nm(4 more options)
- Absorbance Range : 0–4.0 Abs
- Resolution : 0.0001 Abs
Operating System
- Operation system: Windows XP, Windows 7, Windows 8, Windows 10
- Data processing: Automatic calibration, test combination, effective time management of reagents, serum index, whole process detection, linear expansion of enzyme, blank deduction, dirty cuvette memory, cross infection prevention, patient information memory and association input, automatic report audit, data fuzzy query, report statistics and printing, reference range grading, alarm information classification, user operation privilege classification management.
- Report printing: 6 formats optional, support custom pattern
- Interface: TCP/IP network interface
Working Conditions
- Power supply: AC 110/220V ± 10%, 50/60 Hz, 650W
- Water consumption: 15L/hour (maximum)
- Dimension: 1110mm * 765mm * 1150mm (L*W*H)
- Weight: 164 kg
Benefits
- Streamlined workflow for medium and high-throughput laboratories
- Flexible reagent use and customizable test configurations
- Reduced maintenance and water consumption
- Accurate and reproducible results with automated calibration
- Intuitive operation for faster setup and user training
