Overview

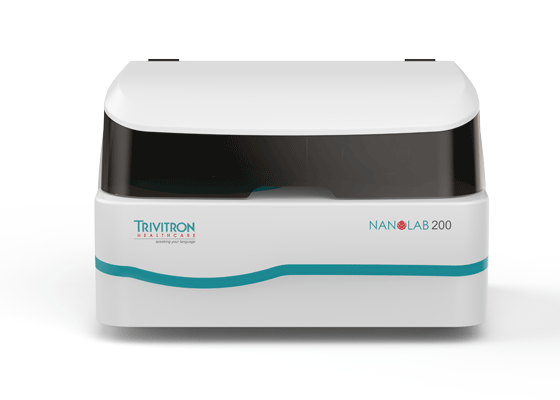

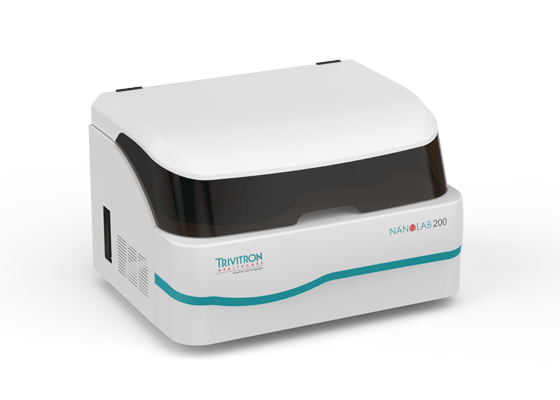

Nanolab 200 is a compact, fully automated clinical chemistry analyser designed for medium to large laboratory workloads. With a throughput of up to 200 tests per hour, it delivers accurate, efficient, and reliable biochemical analysis across a broad range of assays. The system’s open architecture, low water consumption, and intuitive operation make it a dependable choice for routine and special chemistry testing.
Features
- Throughput : Performs up to 200 tests per hour for consistent and timely results.
- High Capacity : 40 reagent and 40 sample positions to support varying volumes.
- Open System : Compatible with reagents from multiple manufacturers, providing flexibility in operations.
- Efficient Sample Handling : Multifunctional probe with liquid level detection and collision protection for precision and safety.
- Mixing Arm : Dedicated Teflon-coated mixing arm with adjustable speeds for improved assay consistency.
- Onboard Laundry System : Optimized washing process ensures minimal water consumption and reduced maintenance.
- User Interface : Simple, Windows-based operation with smart data management, automatic calibration, and customizable reports.
- Compact Design : Bench-top configuration ideal for space-conscious laboratories without compromising performance.
Technical Specifications
Sample Unit
- Sample Tray : 40 positions
- Tube Compatibility : Micro cup, test tube, or blood collection tube
- Sample Volume : 2–30 µL (0.1 µL step adjustment)
- Real-time sample level detection and collision avoidance
- Optional barcode reader
Reagent Unit
- Reagent Tray : 40 positions
- Continuous cooling system (2°C–14°C)
- Open reagent system; volume 20–300 µL (1 µL step)
- Real-time reagent level detection and collision avoidance
- Optional reagent barcode support
Optical System
- Light Source : Halogen lamp
- Wavelengths : 340, 405, 450, 505, 546, 578, 630, 700 nm (with 4 additional optional filters)
- Absorbance Range : 0–4.0 Abs
- Resolution : 0.0001 Abs
Operating System
- Compatible with Windows XP, 7, 8, 10
- Automatic calibration, data processing, reagent tracking, and patient data management
- TCP/IP network interface and report printing (6 customizable formats)
Working Conditions
- Power : AC 110–220V ±10%, 50/60 Hz, 650W
- Water Consumption : ≤8 L/hour
- Dimensions : 870 × 690 × 740 mm (L × W × H)
- Weight : 80 kg
Benefits
- Streamlined workflow for medium and high-throughput laboratories
- Flexible reagent use and customizable test configurations
- Reduced maintenance and water consumption
- Accurate and reproducible results with automated calibration
- Intuitive operation for faster setup and user training
