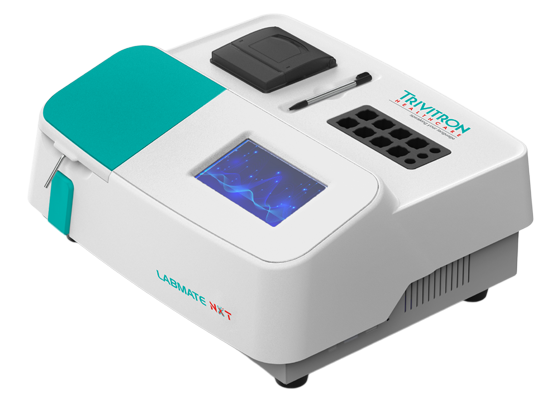

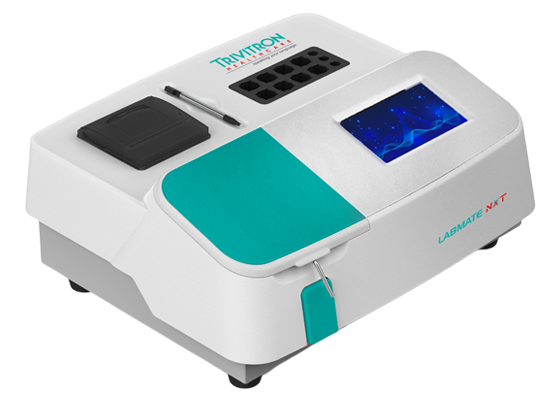

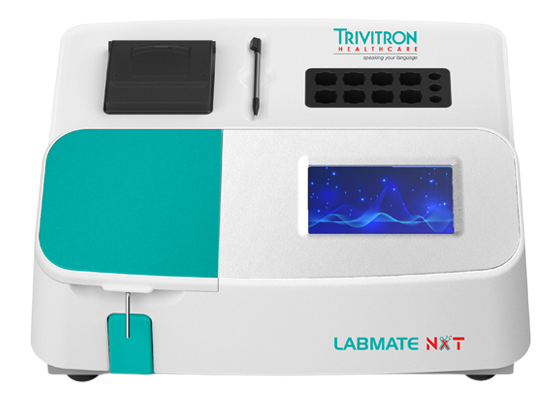

Labmate NXT
Next Generation Semi-Automated Biochemistry & Immuno Turbidimetry Analyzer High-performance, semi-automated analyzer designed for accurate, reliable, and efficient biochemistry testing in clinical laboratories.
Overview
Labmate NXT is a smart choice for laboratories seeking a versatile, semi-automated biochemistry analyzer. Designed for routine chemistries, electrolytes, and drug tests, it combines advanced optics, analytical versatility, and intuitive software to simplify testing and reporting.
- 8 modes of operation for flexible test management
- Real-time curve monitoring and patient result tracking
- Collated reports by Patient ID, Date, or Test
- Unlimited patient result storage with daily and monthly QC graphs
- 7-inch capacitive touch color display for smooth navigation
- Intended for quantitative and qualitative in vitro testing of analytes in body fluids under trained supervision
Key Features
- High Precision : Maintenance-free photometer ensures accurate and precise results.
- Direct Reporting : Print reports directly on letterhead through Labmate NXT.
- Flexible Workload : Ideal for small to medium laboratories.
- Lamp Saver Mode : Extends lamp life for long-term reliability.
- Comprehensive Storage : Unlimited patient results and 4-level quality control.
Technical Specifications
Optical Unit
- 12V, 20W Quartz Halogen Lamp
- Monochromatic and Bichromatic measurement
- Absorbance range : 0–3.5 Abs
- 6 filters (Optional 2 : 450nm & 700nm) — 340nm, 405nm, 505nm, 546nm, 578nm, 630nm
- Rotating filter wheel mechanism using stepper motor
Measuring Unit
- 32 μL Quartz Flow Cell
- Peltier temperature control : 20°C–40°C (steps of 1°C)
- Digitally controlled using Peltier module and sensor
- Patient results collated by ID, Date, and Test
- Aspiration volume: 200–1000 μL
Display & Incubator
- 7-inch capacitive touch color display
- Inbuilt incubator with 8 positions for standard round test tubes
- Fixed at 37°C ±0.5°C, digitally controlled using silicone heater pad and sensor
Analysis Methods
- End Point, Fixed Time, Fixed Time with Multi-Standards
- Kinetic, Kinetic with Standard, Multi Standard Absorbance
Benefits
- Accurate and reliable results every time
- Easy report generation and data management
- Flexible for varying laboratory workloads
- Long-term operational reliability with lamp saver and maintenance-free design
- Complete QC monitoring for consistent test quality
