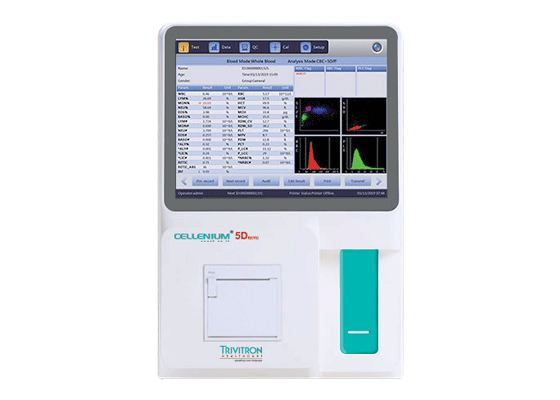

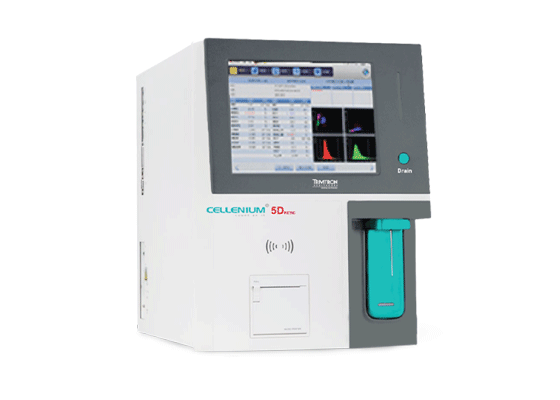

Cellenium 5D Retic
Cellenium 5D Retic is a 5-part differential hematology analyzer with reticulocyte counting, offering high-throughput, accurate results and 34 key parameters for reliable clinical and research diagnostics.
Overview
The Cellenium 5D Retic delivers precise, high-throughput hematology analysis. Designed for efficiency and reliability, it provides 34 key parameters including reticulocyte counts, enabling accurate diagnosis and research insights.
Key Features
- Easy-to-use interface with a 10.4” touch screen and internal thermal printer
- High throughput: 60 samples per hour
- 34 parameters including RET%, RET# and advanced research markers
- Dual WBC counting mode for enhanced accuracy
- Laser light multidimensional classification with resistant RBC mode
- Multi-user functionality with secure login and data management
Technical Specifications
- Throughput : 60 tests/hour
- Parameters : WBC, LYM%, MON%, NEU%, EOS%, BASO%, LYM#, MON#, NEU#, EOS#, BAS#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, PLCC, NRBC%, NRBC, RETIC%, ABS RETIC#, IRF, ALY%, ALY#, LIC%, LIC#
- Histograms & Scattergrams : 2 RBC/PLT histograms, 5-part differential scattergram, Eosinophils and Neutrophils scattergram, 3D stereograms
- Principle of Operation : WBC DIFF: Flow Cytometry, laser-based multidimensional cell classification; RBC/PLT: Impedance method; HGB: Cyanide-free colorimetry
- Calibration & Control : Standard blood with manual calibration, LJ, XR, XB control modes
- Data Storage : 200,000 records with graphics
- Connectivity : RS232, USB, Ethernet; software upgrades via USB memory stick
- Reagents & Sampling : Whole blood 20 µL, prediluent 20 µL, diluent, sheath, detergent, lyse
- Environment : Temp 15–30°C, RH max 80% (non-condensing)
Benefits
- Affordable, best-in-class technology for laboratories of all sizes
- Quick, reliable results supporting fast clinical decision-making
- Large onboard storage: 200,000 records with graphical representation
- Flexible connectivity: RS232, USB, and Ethernet support
- Compact footprint: 46 × 49 × 33 cm, weighing 35 kg
