As medical technology advances, ultrasound has become an increasingly important tool in diagnosing and treating various medical conditions. Ultrasound machines have come a long way over the years, and the SonoRad V9 from Trivitron Healthcare is a prime example of just how far the technology has come.
SonoRad V9 is a Best Quality and Advanced Color Doppler Ultrasound machine with many traits and capabilities, making it an ideal choice for medical professionals. With its advanced imaging capabilities and user-friendly interface, this machine is well-suited for various settings and applications.
Whether one is an obstetrician, gynecologist, cardiologist, or vascular specialist, SonoRad V9 has something to offer. Its advanced imaging capabilities allow medical professionals to see even the smallest details, while its versatility and comfort of use make it a helpful tool in any medical practice.
What is a Color Doppler Ultrasound?
Color Doppler ultrasound is a medical imaging technique that combines standard ultrasound technology with Doppler imaging. Doppler ultrasound in India allows physicians to see the movement of blood through the body’s blood vessels by detecting changes in the frequency of sound waves reflected off the blood cells.
During a Color Doppler Ultrasound, the technician places a small hand-held device called a transducer on the skin over the area that needs to be diagnosed. The transducer emits high-frequency sound waves that non-invasively enter the body and bounce back when they encounter different tissue types. The transducer detects the echoes produced by these sound waves and converts them into images that can be seen on a monitor.
The direction and speed of blood flow are also detected and displayed as colors on the monitor. Blood moving toward the transducer is blue, while blood moving away from the transducer is red. The speed of blood flow is also shown as variations in the intensity of these colors.
Color Doppler Ultrasound is commonly used to diagnose problems with blood vessels, such as blockages, narrowing, or aneurysms. It can also be used to evaluate blood flow to organs, such as the heart, liver, or kidneys, and to assess blood flow in developing fetuses during pregnancy.

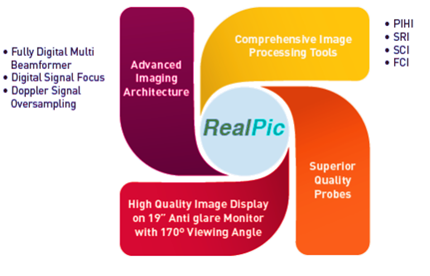

Technology
Amazing Features of SonoRad V9
Image Quality
One of the most important elements of any ultrasound machine is image quality, and Sonorad V9 delivers in spades. This machine uses advanced technology to produce high-quality images that are clear and detailed, allowing medical professionals to see even the smallest details.
The machine is equipped with a high-resolution LCD that provides a clear, detailed view of the images being produced. The display is also adjustable, allowing medical professionals to customize the settings to suit their individual needs.
Ease of Use
Another important consideration when choosing an ultrasound machine is its ease of use. SonoRad V9 is designed with the user in mind and features a user-friendly interface that is intuitive and easy to navigate.
The machine also comes with various preset modes and settings that make it easy to quickly and easily set up for various applications. This can save medical professionals time and help them to be more efficient in their work.
Versatility
SonoRad V9 is a versatile machine that can be used in various applications. It is particularly well-suited for obstetrics, gynecology, cardiology, and vascular imaging.
This best ultrasound machine in India features a variety of presets that make it easy to set up quickly for these and other applications, and its advanced imaging capabilities allow medical professionals to see even the smallest details.
In addition to its versatility in terms of applications, the Sonorad V9 is also versatile in terms of connectivity. The machine can be easily connected to various other devices, including printers and external monitors, making it easy to share images and data with other medical professionals.
Imaging Modes
High-Resolution B-Mode:
B-Mode is a two-dimensional ultrasound image display that is composed of bright dots, and it represents the ultrasound echoes. The amplitude of the returned echo signal determines each dot’s radiance. This permits visualization and quantification of anatomical structures and visualization of diagnostic and therapeutic procedures.
High-Resolution M-Mode:
M-mode, short for motion mode, is a type of ultrasound imaging mode that is used to display movement over time. M-mode is typically used in conjunction with other ultrasound imaging modes, such as B-mode and Color Doppler, to provide a complete picture of the anatomy and function of the structures being imaged.
In Color Doppler Ultrasound, M-mode is used to display the velocity and direction of blood flow over time within a specific region of interest. The M-mode display consists of a single line representing the blood flow movement over time. The velocity of the blood flow is represented by the distance between the peaks of the waveform, while the direction of the waveform deflection indicates the direction of flow.
High-Resolution PW (Pulsed Wave):
This imaging mode is a type of Doppler ultrasound technique used to evaluate blood flow velocity in the human body. In PW imaging, the ultrasound machine sends out a series of short pulses of sound waves, which are reflected off moving red blood cells in the blood vessels. The reflected sound waves are then detected by the transducer and analyzed by the ultrasound machine to determine the velocity of blood flow.
In PW imaging mode, the ultrasound machine uses a special type of transducer that emits and receives pulses of ultrasound energy at different frequencies. This allows the ultrasound machine to measure the velocity of blood flow at different depths within the body. By analyzing the frequency shifts in the reflected sound waves, the ultrasound machine can determine the speed and direction of blood flow.
PW imaging is commonly used in a variety of medical specialties, including cardiology, vascular surgery, and obstetrics and gynecology, to assess blood flow in the heart, blood vessels, and fetus.
High-Resolution Triplex imaging mode:
It is a type of ultrasound imaging mode that combines three different imaging modes in real-time. It combines B-mode, Color Doppler, and PW Doppler imaging to comprehensively assess the anatomy and function of the structures being imaged.
In B-mode, high-frequency sound waves are used to create a two-dimensional image of the anatomy being examined, such as a blood vessel or organ. Color Doppler is used to evaluating blood flow’s direction and velocity within the region of interest. In PW Doppler mode, pulsed sound waves are used to measure the velocity of blood flow at a specific location.
In triplex imaging mode, these three modes of imaging are displayed simultaneously on the same screen, allowing the operator to assess the anatomy, blood flow direction, and blood flow velocity simultaneously. This can provide a more accurate assessment of blood flow characteristics, such as detecting areas of turbulence, stenosis (narrowing), or blockages.
Triplex imaging mode is commonly used in cardiology and vascular imaging to assess blood flow in the heart, blood vessels, and surrounding tissues. It can also be used in obstetrics and gynecology to assess blood flow in the fetus and placenta. By combining multiple imaging modes in real-time, triplex imaging mode can help improve the accuracy of diagnoses and guide appropriate treatment.
CPA imaging modes:
DPD or Directional Power Doppler, a mode of Doppler Ultrasound Imaging used to detect and display blood flow in small vessels and areas of low flow. Unlike Color Power Angio, DPD does not provide information about blood flow velocity or direction. It is more sensitive to slow flow and can detect flow in vessels that may not be visible with other imaging modes. DPD is used in applications such as detecting blood flow in small organs, such as the thyroid gland or breast, and in evaluating fetal circulation during pregnancy.
Extraordinary Ergonomics
- Sturdy Wheels with One Step Caster Lock Mechanism
- It comes with 19” Anti-Glare monitor with wide viewing angle of 170º & Swivel Monitor/ Arm
- Intuitive & User Friendly Control Panel with Backlit & 15° Tilt
- 4 USB Ports & 1TB Internal hard disk for Storage
- Front compartment for storage of accessories
- 3 Active Probe Connectors.
Wide Range of Probes for Various Clinical Applications:
- Convex
- Micro-Convex
- Linear
- Endo-Cavity
- Phased Array
- Volume 4D
One-Touch feature
Uni-K is the set of One-Touch features that maximizes your productivity and Patient throughput every day.
- One Touch Probe / Exam Switch
- One Touch Image Optimization
- One Touch Flow Optimization
- One Touch Spectrum Optimization
With its impressive features and capabilities, SonoRad V9 meets the requirements of even the most demanding medical professionals.
For more information on Color Doppler Ultrasound Cost, Ultrasound machine for pregnancy, portable ultrasound machine, and its technical details schedule a call with our experts at Trivitron Healthcare.
