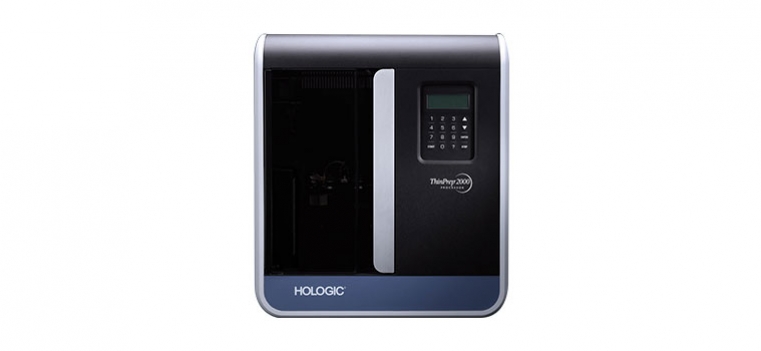

ThinPrep® 2000 ProcessorBeyond the conventional PAP smearA semi-automated sample preparation instrument to prepare gynecological and general cytology specimens.
The ThinPrep 2000 Processor is an automated slide preparation unit used with the ThinPrep Pap Test for cervical cancer testing. The ThinPrep 2000 can also be used for non-gynecological specimens such as for the diagnosis of cancers of the lung, bladder, and gastrointestinal tract, and in the preparation of fine needle aspiration of the thyroid and breast.
The ThinPrep 2000 utilizes a computerized process and patented membrane technology that controls dispersion, collection, and transfer of diagnostic cells from the sample to the slide. This ensures that the slide is representative and reproducible of the original sample collected in the ThinPrep Pap Test vial.
At the laboratory, the sample vial is placed into the ThinPrep 2000. Under the control of the instrument's microprocessor, a gentle dispersion step breaks up blood, mucus, and non-diagnostic debris, and then thoroughly mixes the sample. A series of negative pressure pulses are generated, which draw fluid though a ThinPrep 2000 filter to collect a thin, even layer of diagnostic cellular material. The ThinPrep 2000 constantly monitors the rate of flow through the ThinPrep 2000 filter during this process to collect an appropriate amount of material.
The cellular material is transferred to a glass slide using computer-controlled mechanical positioning and positive air pressure. The slide is then ejected into a cell fixative bath, ready for staining and evaluation.
The ThinPrep 2000 Processor will include an Accessory Kit containing:
The ThinPrep 2000 Processor utilizes mechanical, pneumatic and fluidic principles for cell dispersion, collection and transfer.
Dispersion: A rotary drive mechanism gently disperses samples
Collection: A pneumatic / fluid system, controlled by a microprocessor, monitors cell collection
Transfer: Computer controlled positioning and positive air pressure facilitate transfer of cells to the ThinPrep Microscope slide
ThinPrep® Processor Dimensions
Weight 41lbs / 19kg (approx)
side (ea): 3”/8cm
Operating Temperature 15-32ºC / 59-90ºF
Electrical 100/120 VAC at 2 amps
Voltage 220/240 VAC at 1 amp
Frequency 47-63 Hz
Power 200 watts
